Dungeon Generation

Im really tired today, so lets focus on something “passive”. I got a dungeon generator video recommended and I am gonna watch that and make some notes.

https://www.youtube.com/watch?v=gHU5RQWbmWE

Create the rooms
Assign walls and doors at the same place, i guess that they are enabled or disabled by the generator
Name doors based on the orientation, a la top, left, down, right

code

create array out of door, 0 is up, 1 is down etc
function that checks if doors are open or closed, it checks the index for true or false, true means there is a door for the specific index entry
function for loops through the index and sets them active and sets walls inactive, just as I guessed before

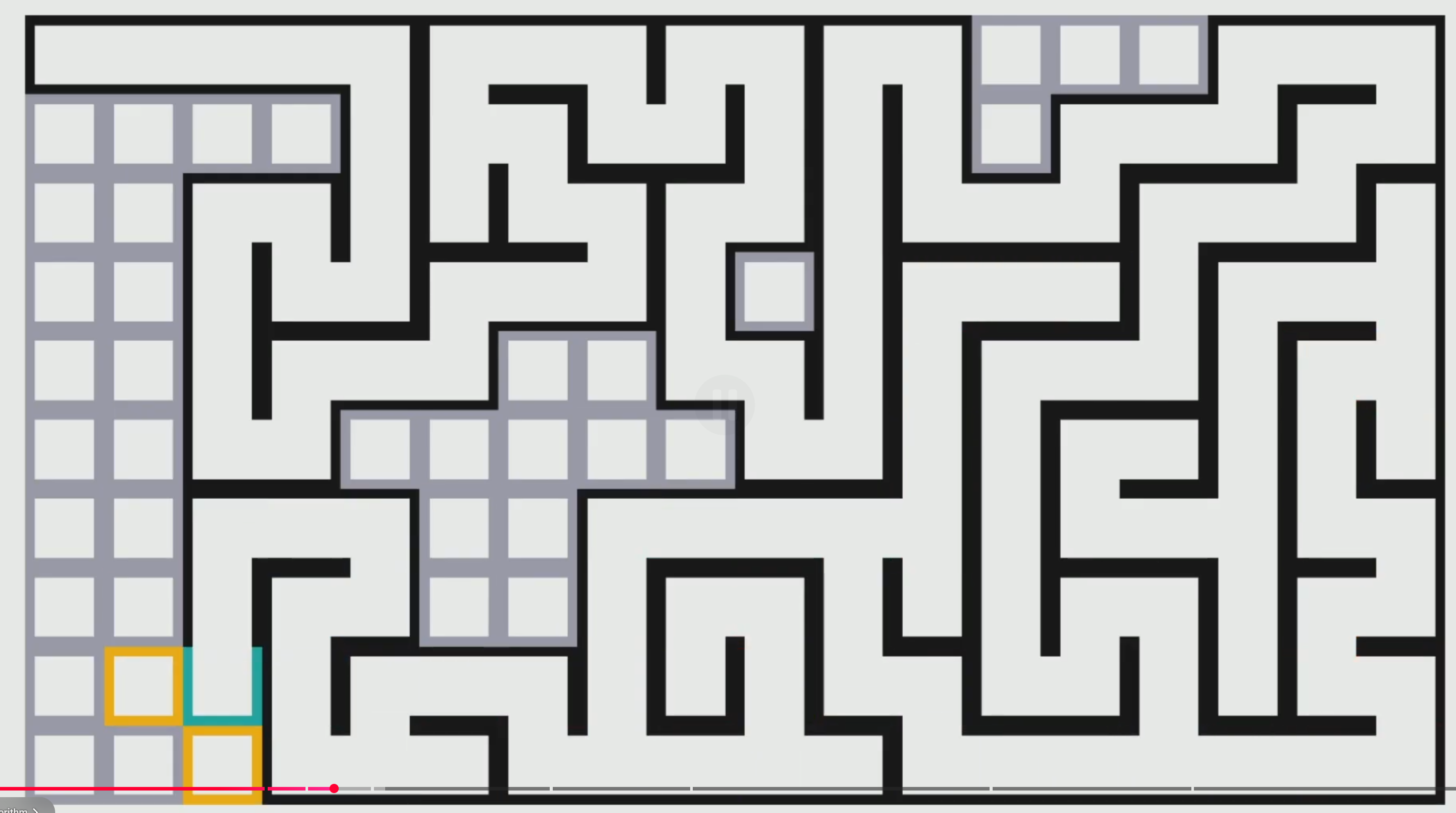

generation of the dungeon: Depth First Search algorithm, creates a maze, it randomly picks a cell until it goes through all possible unvisited cells until it has nowhere else to go, then it goes back and tries to find all possible paths
First step is to choose a starting cell
Class Cell that contains information of all cells, it has to check if the cell has been visited or not
Class Cell that checks the status of the cell, checks for doors
Create a function that creates a maze
Create a function that checks neighbours

ideas for dungeon generation

create x rooms based on the level difficulty or level
find paths between the rooms, test if every room is reachable and the boosroom is reachable
at the end of every path there should be a door, paths shouldnt aim towards nothing

— godot specific video

https://www.youtube.com/watch?v=yl4YrFRXNpk

Pre watch ideas, how would this one work?

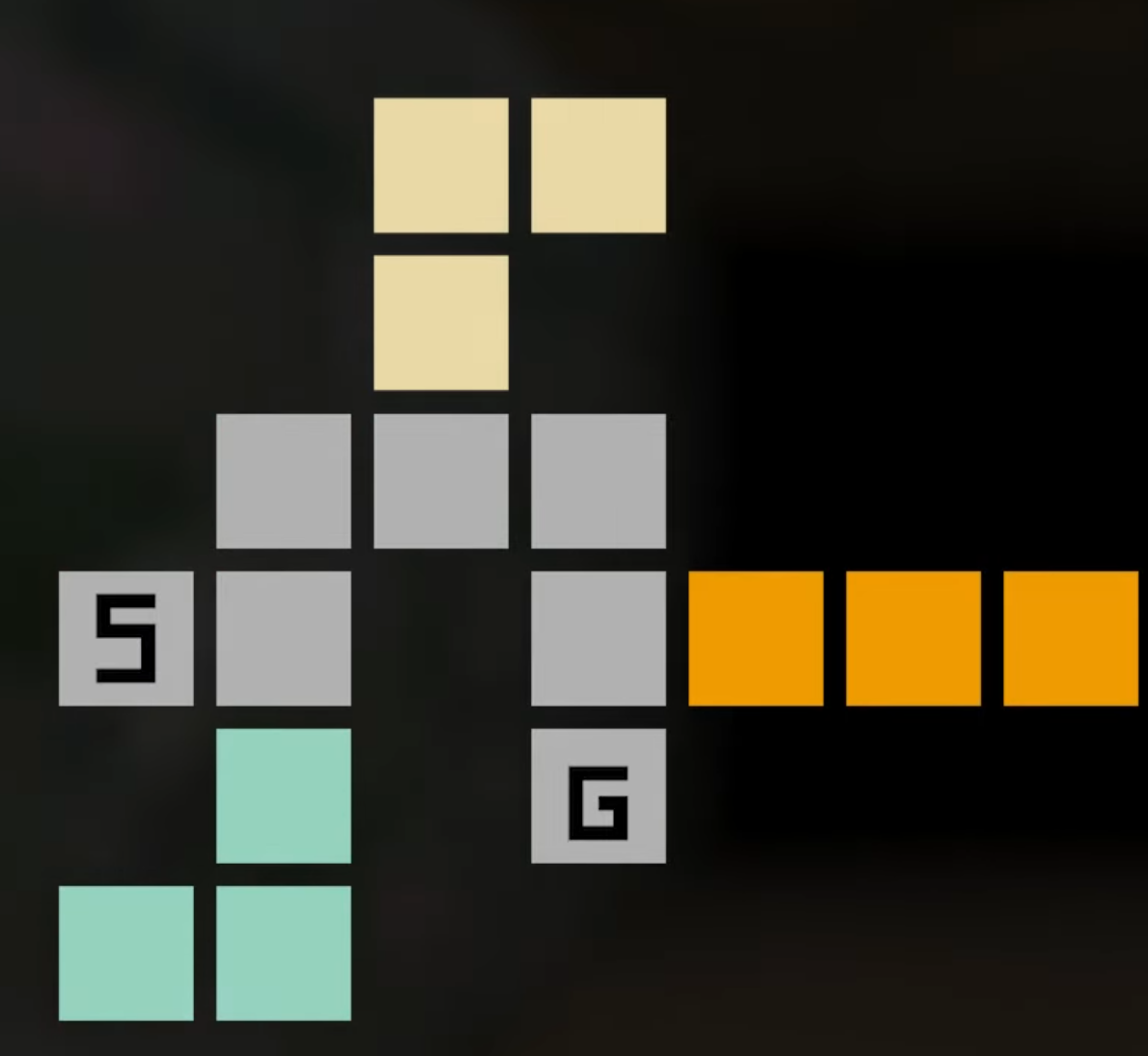

Path that goes from start to end
Branches out a couple of times and continues a little along the main path
Create a grid
Find a starting position
define and ending position by random (define min distance)
find path (i guess vector math? Or some algo? My guess would be divide the distance by 3, create a path that does not go the shortest distance, have three tracks where the position of every branch is choesen randomly within these tracks, go into a random direction with a min distance and try not to overlap with other ways, randomly go in another direction by randomly choosing vector x or y )

video:

Constraints: Maximum size of the dungeon a la dimensions like 5 wide, 7 long -> array

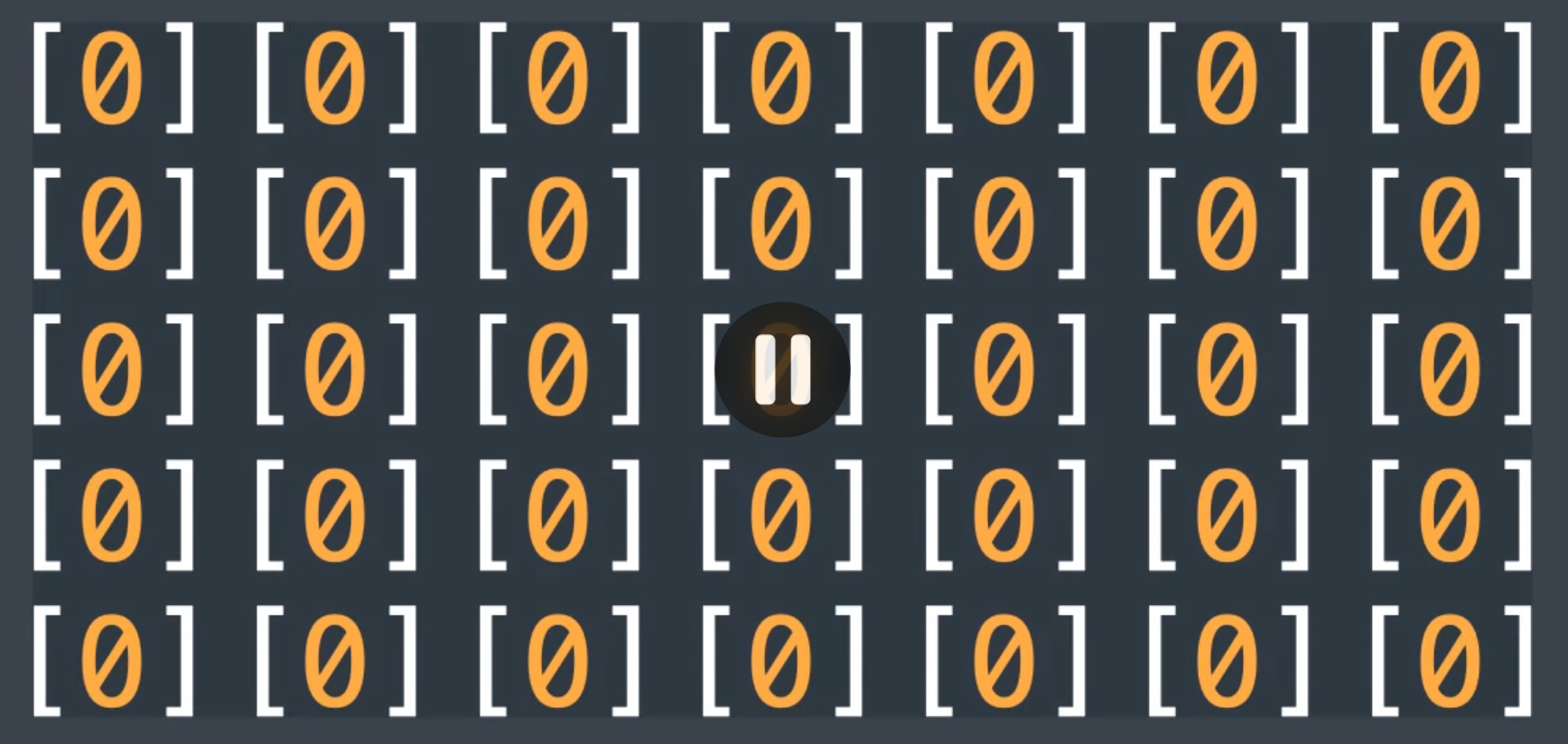

loop through the x and y dimension to create an array with the size of the dungeon and set (initialize) 0 for every index entry
print, go through x first,, add one y, next x line, print with new line, prototype in the cli first before using meshes
Set static start position for the dungeon, if not valid, randomize starting position
Set array position to S for start position
Set ciritcal path length = minimum path distance
Create function that generates critical path
This function randomly chooses a direction 1-4 and switch cases the direction
Check if the direction is out of bounds OR is not empty , rerandom direction
if direction is ok, change value +1 direction
use starting point values as reference when calculating the critical path,
every loop, add 1 for every loop step after moving to the reference point length until defined length is met
